- Ultra low vibration, durable machine, dispense foundation
- Operation simple, fit for all kind of material
- Optional way of heat: electric heated, steam heated, gas heated
- Large diameter loading door, easy for input and output

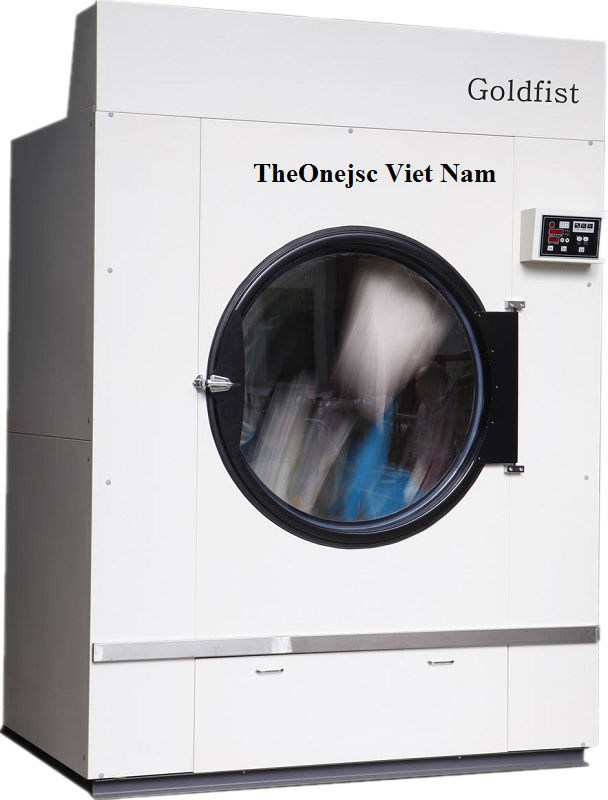

1. HIGHLIGHT OF HG DRYING MACHINE GOLD FIST 100 KG
- Ultra low vibration, durable machine, dispense foundation
- Operation simple, fit for all kind of material
- Optional way of heat: electric heated, steam heated, gas heated
- Large diameter loading door, easy for input and output
2. SPECIFICATIONS OF HG DRYING MACHINE GOLD FIST 100 KG
Model: HG - 100
Brand: GOLDFIST
Rated capacity (kg): 100
Drum volume (L): 2000
Power supply (V/P/Hz): 380/3/50
Main motor (kw): 3
Blower rated power (kw): 2x 1.5
Drum rotation (r/min): 30
Steam pressure (mpa): 0.5-0.6
Steam tube (DNmm): DN25
Drain pipe (DNmm): DN20
Every washing power comsumption (about)(kwh): 3.3
Every washing steam comsumption (about)(kwh):130 - 160
Electric heater power (kw): 72
Every washing power comsumption (about)(kwh): 50
Air outlet size (mm): 220x420
Extenal Dimension (mm) (WxDxH): 1800x1900x2600
Machine weight (kg): 1010
Original: Taiwan
New 100%
PLEASE CONTACT TO US TO GET SUPPORT
